MetaRFence: Protecting Human Motion Privacy Against RFID Sensing via Metasurface

1Shandong University, 2University of Pittsburgh, 3Nanjing University of Aeronautics and Astronautics,
4The Hong Kong Polytechnic University
IEEE Transactions on Mobile Computing (TMC)

MetaRFence is the first metasurface-based system to protect human motion privacy against through-wall RFID sensing.

Abstract

Radio Frequency Identification (RFID) technology has emerged as a pervasive modality for human motion sensing in applications such as smart environments and healthcare monitoring. However, the inherent through-wall sensing capability of RFID technology raises critical privacy concerns regarding the unintended leakage of human motion information, a challenge that has not been adequately addressed. To fill this gap, we present a metasurface-based RFID sensing defence (Metafence), the first system designed to protect human motion privacy against adversarial through-wall RFID sensing. To this end, we first devise a programmable metasurface comprising 1-bit phase shifters that systematically obfuscate motion-induced signal patterns. Through comprehensive theoretical modeling and empirical investigations, we then characterize the metasurface's impact on RFID signals across temporal and spectral domains. However, our analysis reveals that it is non-trivial to achieve effective signal obfuscation in both domains, primarily due to a fundamental trade-off between increasing temporal signal variation and masking human motion in its spectrum. To overcome this, we judiciously devise a metasurface controlling strategy that jointly optimizes the signal entropy, variance, and spectrum distribution to reach a balance between temporal and spectral motion obfuscation. Our comprehensive experiments demonstrate that Metafence reduces adversarial through-wall motion detection rates to ≤6%, decreases the F1-score of human gesture recognition to ≤0.11 on average, and amplifies respiration rate estimation errors by 3×, establishing a robust defense mechanism for RFID-based motion privacy protection.

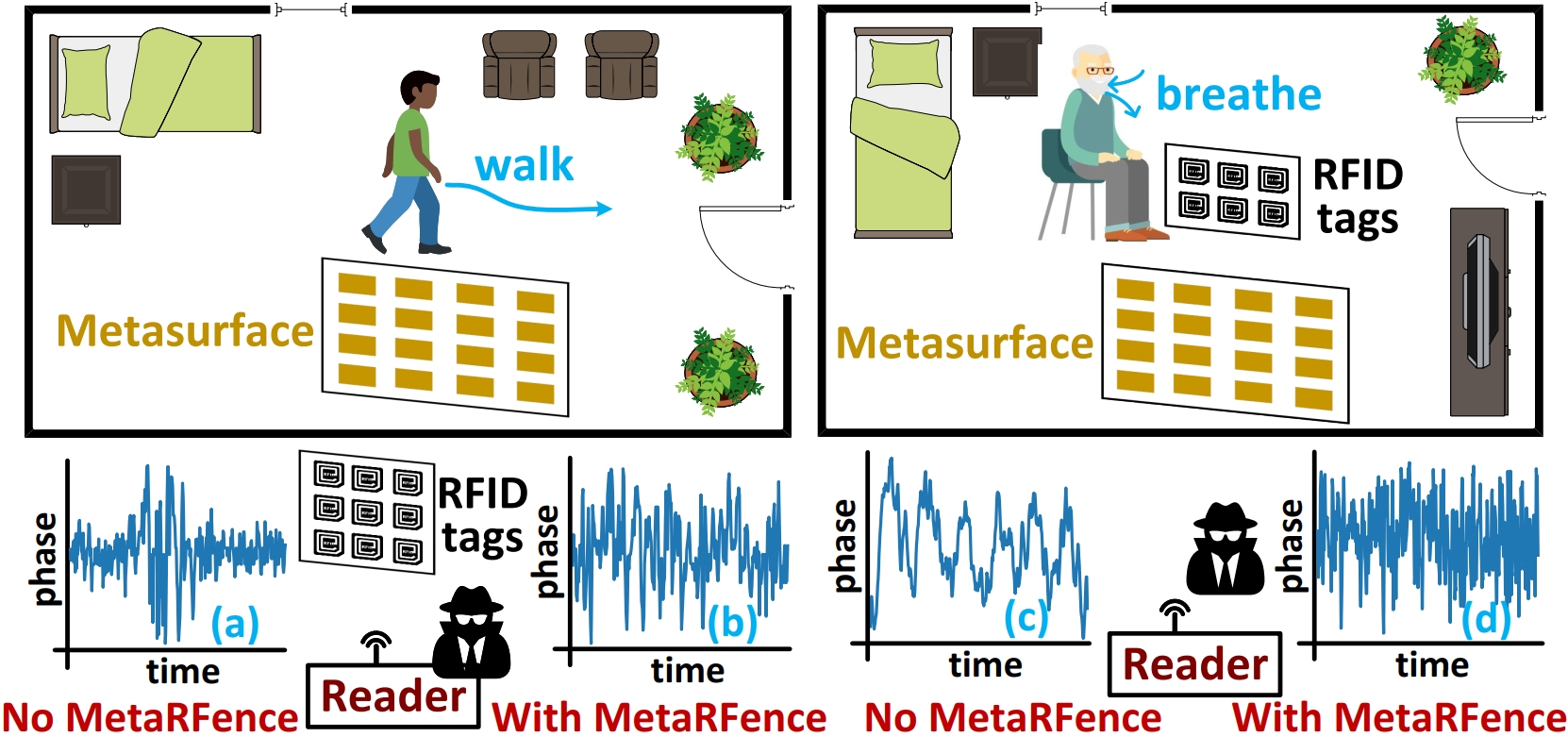

MetaRFence walking/breathing

MetaRFence can effectively obfuscate walking and breathing patterns in RFID signals for motion privacy protection.

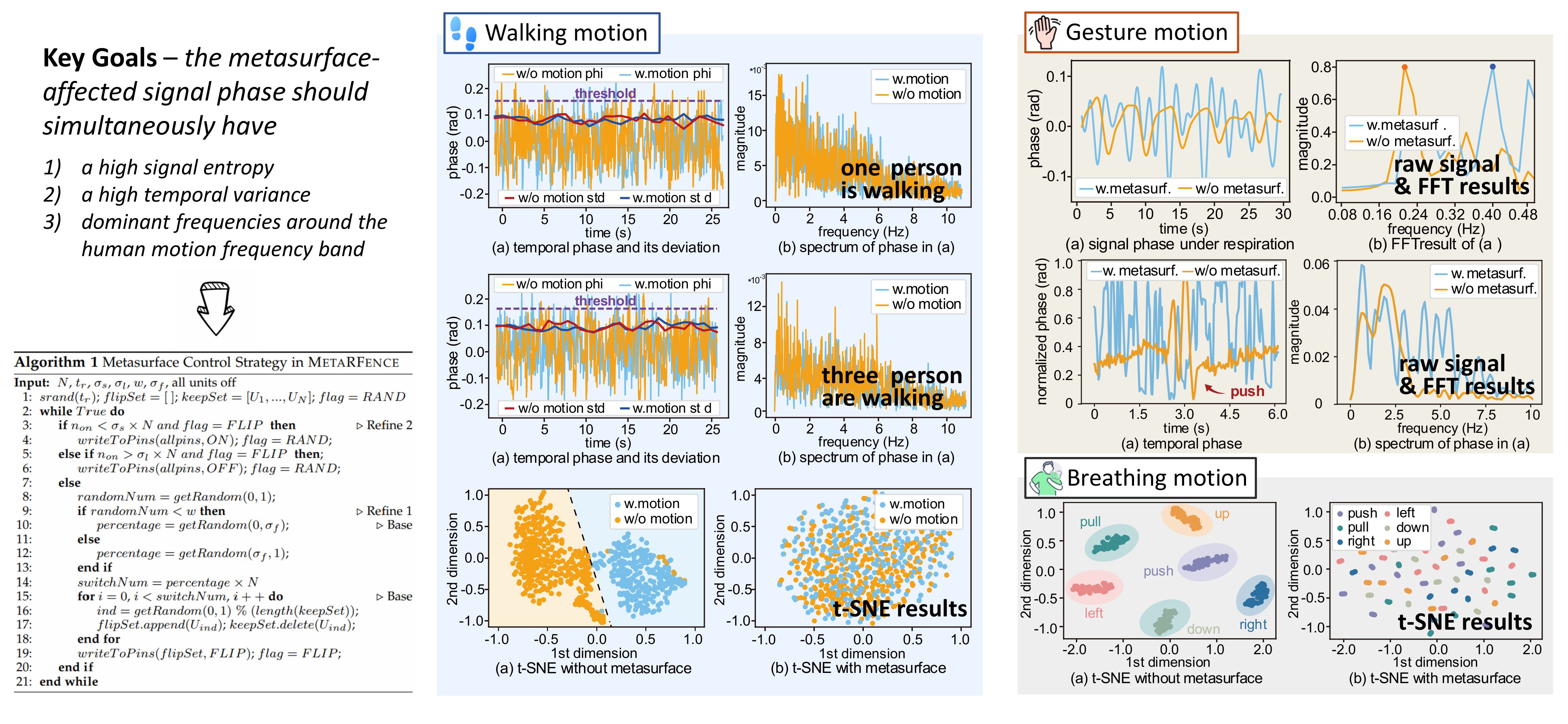

Signal Comparison

Visualize and compare the eavesdropped signal and MetaRFence-affected signal in both temporal and spectral domains: the strategy not only can effectively obfuscate the raw motion signal in both domains, but also high-level signal features from different sensing algorithms.

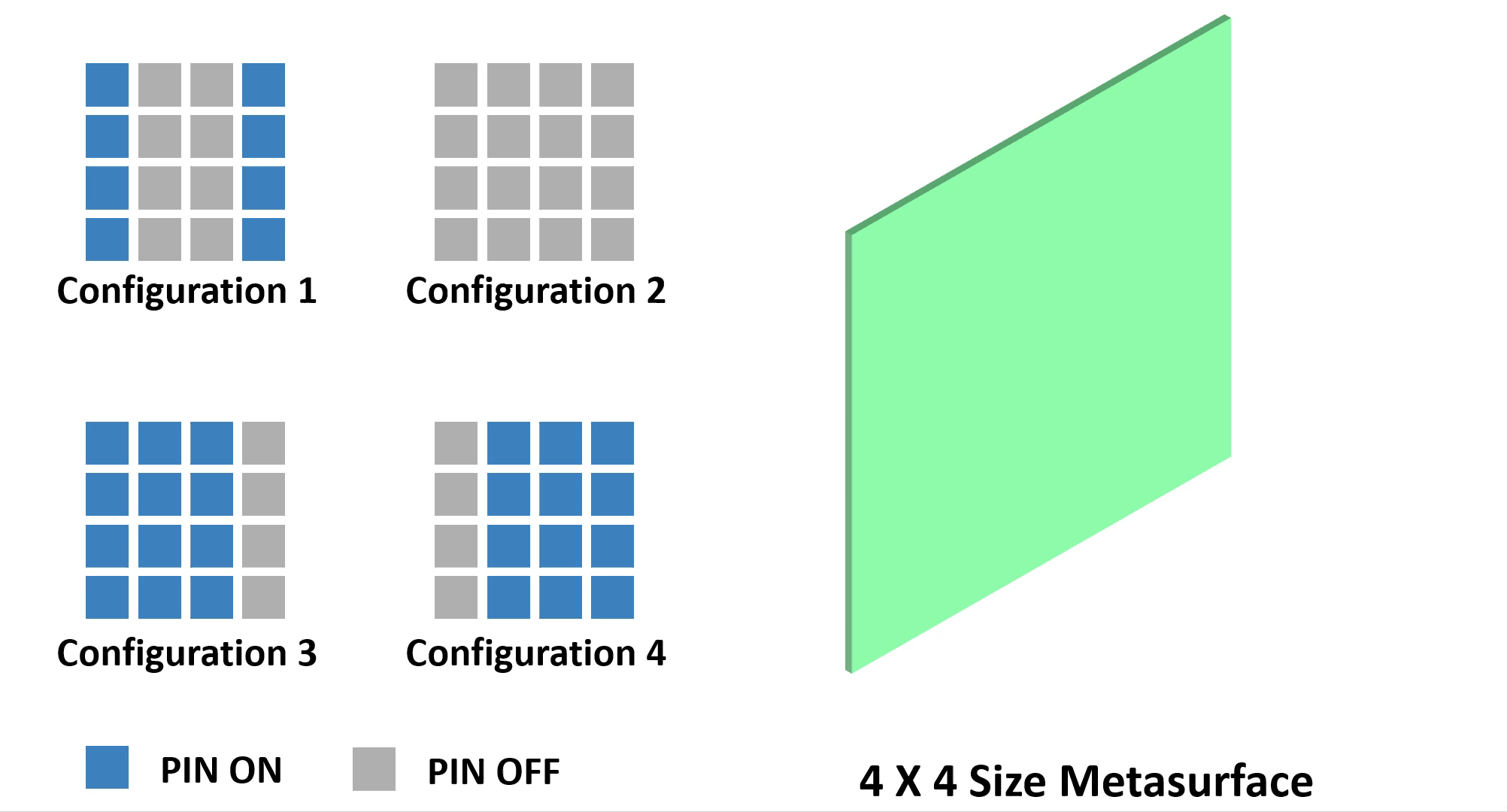

Metasurface Reflection Pattern

The reflection pattern of the metasurface changes with different unit on-off configurations, and the reflection gain peaks in the center.

Hardware Deviations

The hardware deviations of the metasurface unit dimensions.
